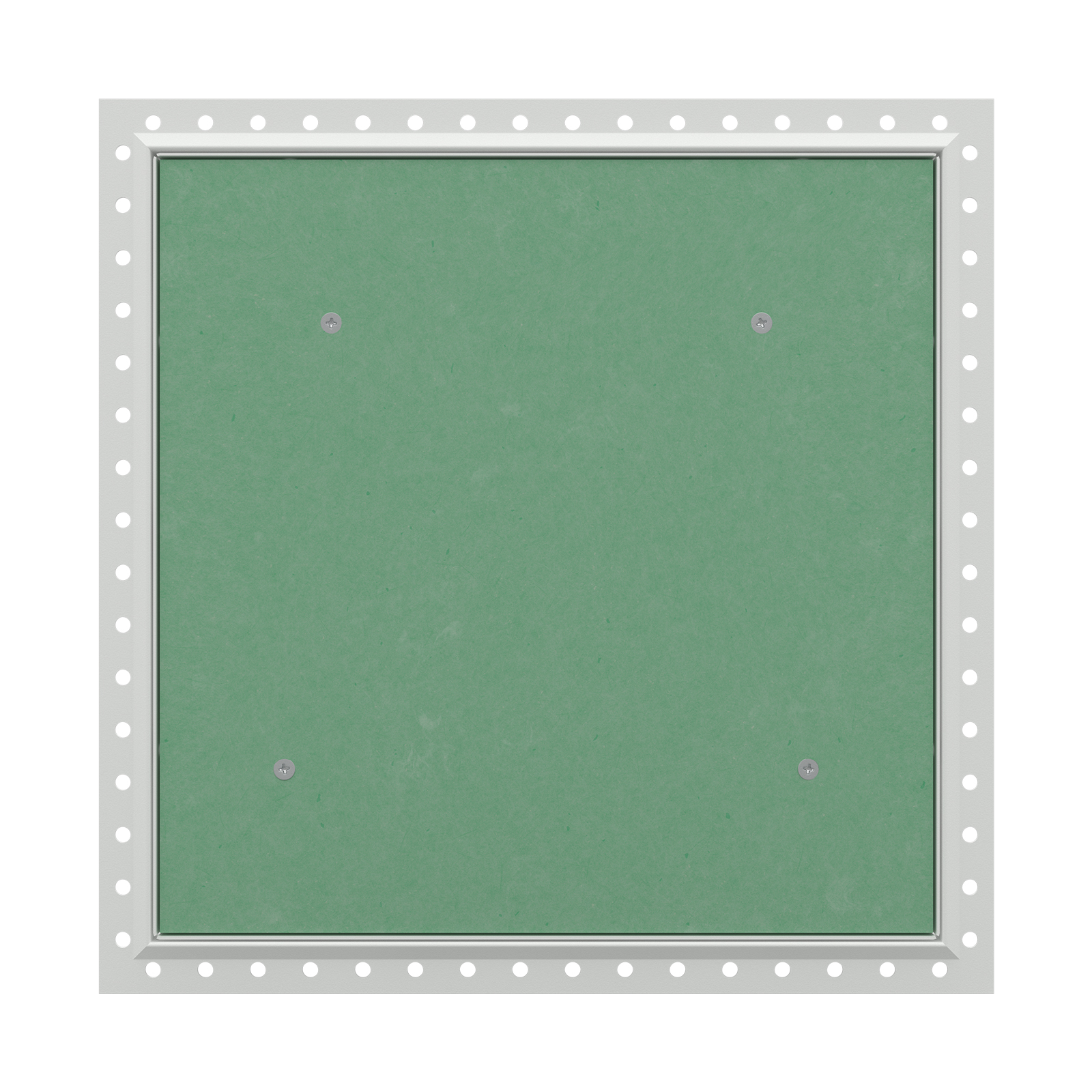

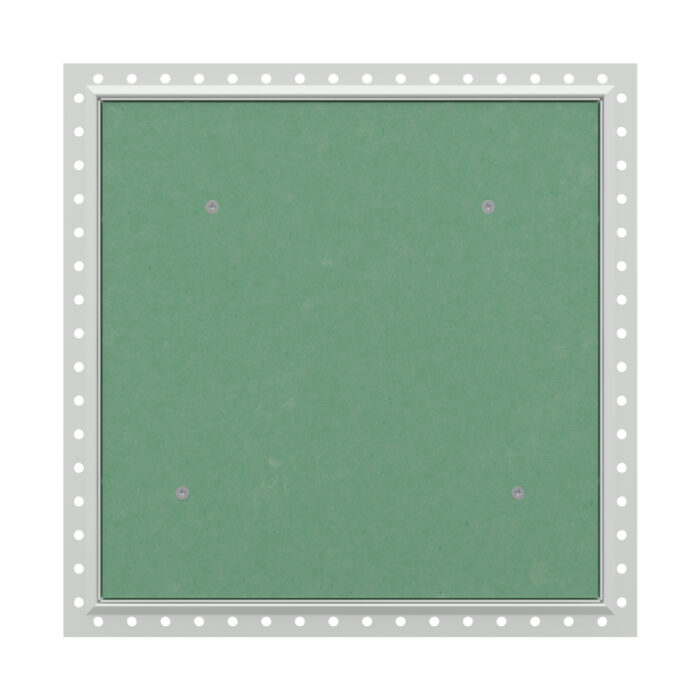

FlipFix Tile Door Access Panel – Beaded Frame
- Made to your exact specification
- Lift out door
- Controlled action device prevents the door falling away from the frame upon opening
- Removable door
- Moisture board infill capable of supporting a weight of 32kg per square meter
- Available in non-fire rated only
Can't find the size you're looking for?
Build and design a custom access panel by using our panel builder.
This will be manufactured to your exact specification. Our current manufacturing lead time is 4 working days. Position the fixing clamps so they are facing the drywall. Then using a screwdriver or drill, tighten the screws until the clamps are firmly secured. Tile over the panel face and frame for a discreet finish.* Available with a touch catch lock for a simple push to open/close action. The moistureboard infill can hold a total weight of 32kg per square meter. * It's important to ensure that the tiles do not overhang the door and/or frame as this may cause damage to the tiles and impede its opening, The panel door can be completely lifted out making it easier for maintenance and repairs. While it's controlled action device prevents the door from falling away from the frame upon opening.
For complete peace of mind
Designed, conceived & manufactured in the UK
Currently 4 working days.
Only suitable to be installed in walls
Made to your exact specification coming soon...
This is a bespoke product
Easy to Install
Sleek & Durable
Removable Door
10yr Warranty
British Made
Fast Lead Times
Walls Only
Bespoke
Fitting Instructions
| Brand | FLIPFIX |
|---|---|
| Color | RAL 9010 |
| Country of Origin | United Kingdom |
| Fire Rating | 1 Hour Fire Rated, 2 Hour Fire Rated, Non-Fire Rated |
| Included Components | 3-way Utility Key |
| Material | 0.9mm Zintec Steel |
| Size | 1200 x 600mm, 150 x 150mm, 200 x 200mm, 300 x 300mm, 450 x 450mm, 550 x 550mm, 600 x 300mm, 600 x 600mm, 900 x 600mm |
| Usage | Walls |
Delivery
We like to keep things simple, with free next working-day delivery for all stock orders to mainland UK.
We're partnered with APC as our main courier. Their overnight service ensures a timely delivery to most mainland UK addresses.
For deliveries outside of this area, you can expect to receive your order in 3-5 working days. Orders to these locations may also be subject to a delivery charge.
All orders are tracked from dispatch to delivery. Allowing us to provide you with up-to-date information upon request.
You'll receive a text message on the day of delivery with your estimated 1-hour time slot.
Shipping to Ireland and Europe comes with higher courier costs. These can include import duties, VAT and customs/admin charges.
With this in mind, our online store may not allow you to place your order. Should this happen to you, please get in touch and we’ll help you complete your order.
Please note that bespoke orders under £100 net are subject to a delivery fee.
Returns
We offer a 10 Year Warranty and a 30 Day Money Back Guarantee. No questions asked. What could be easier?!
Simply complete our returns form and we'll be in touch with the next steps within 1 working day.
The return can be collected from your address, or taken to a local drop-off point. Either way, we'll provide a pre-paid returns label by email.
Please note, we are unable to accept returns for any bespoke orders.
Select a Product to View Fitting Instructions
Whilst the concept of fitting our panels is fairly universal, the fitting steps required may differ with some panels - such as applying scrim tape to Beaded Frames before plastering over.
Metal Door Picture Frame
Metal Door Beaded Frame
Plasterboard Door Beaded Frame
Tile Door Beaded Frame
Circular Metal Door Picture Frame
Technical Details
MATERIAL THICKNESS: 0.9mm zintec steel
FRAME: 25mm wide, made from one piece of metal
HINGE: concealed pin hinge
FINISH: powder coated in RAL 9010 with a 30% Gloss. Not suitable for painting over
LOCK: Budget Lock
DEPTH: the back of frame is 60mm deep, ensure there is enough clearance before installing
Fire Test Reports & Datasheets
This product is only available in non-fire rated.
To view fire test reports for the FlipFix range, please use the button below.
Any Questions?
Our Story
While working on a DIY project, our owner tried to install a traditional access panel by himself. He grew frustrated at the difficulty, the need for various tools, to brace the opening.
"There has to be an easier way!"
After years of design tweaks and adjustments, the FlipFix clamp was born. Offering the same function, but without all the unnecessary steps.
FlipFix quickly gained traction with this innovative fitting solution. Our exceptional customer service and aftersales support was the next step.
Fast forward a few years, and FlipFix has become one of the market leaders, and most recognised names for access panels in the UK.
We were a proud Community Partner of Leicester City Football Club between 2022 and 2024, who in true underdog style, won the Premier League in the 15/16 season. We wont talk about the 22/23 season...
Our Managing Director & Lifetime Leicester City Fan
Manufacturing
In 2021 a new state-of-the-art production centre was unveiled in the heart of England.
By harnessing the power of automation and the latest technology, the production capacity has increased by up-to 500%. This facility now manufactures our stock access panel sizes only. These are stored locally, allowing for next-day delivery to mainland UK.
